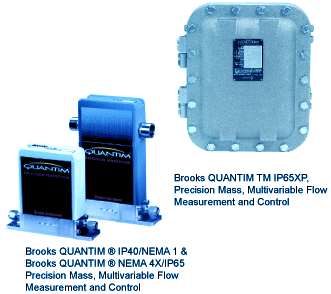

Brooks
QUANTIM® IP40/NEMA 1 & Brooks
QUANTIM® NEMA 4X/IP65 Precision
Mass, Multivariable Flow Measurement and Control
Brooks®
QUANTIM® offers unsurpassed accuracy
and unmatched zero stability in demanding low
flow liquid applications. QUANTIM®
provides Precision Mass Flow Measurement and
Integral Control, On-line Density and Temperature
Measurement all in one compact package. The
heart of the device is a patented and revolutionary
Coriolis sensor design, which measures low flow,
independent of the fluid type or process variables.
This provides you with unsurpassed performance
in even the most challenging operating environments.
The QUANTIM sensor features no moving parts
or obstructions in the flow path. There are
no special mounting or flow conditioning requirements.
Most critical processes require control as well
as measurement, therefore the QUANTIM series
offers an optional integrally mounted, in-line
control valve.
|
|
Brooks
QUANTIM TM IP65XP, Precision Mass, Multivariable
Flow Measurement and Control
Brooks
QUANTIM TM series is designed for Precision
Mass Flow Measurement and Control of low liquid
flow rates. QUANTIM also provides on-line Density
and Temperature Measurement in a compact integrated
package.The heart of the device is a patented
and revolutionary Coriolis sensor design, which
measures low flow, independent of the fluid
type or process variables. This provides you
with unsurpassed performance in even the most
challenging operating environments. No remote
electronics are required as all the transmitting
and control electronics are contained within
the product housing. QUANTIM also supports HART®
Communications Protocol Revision 5.
|
