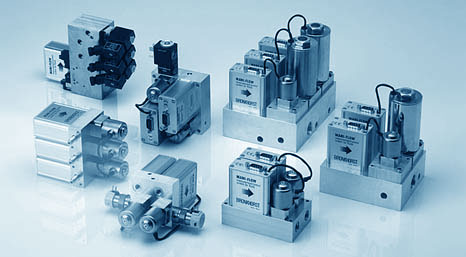

MANI-FLOW Customized Manifold Solutions for Mass Flow and Pressure



    The MANI-FLOW Series originate from the demand of some customers to design an economical solution that combines various functions into one compact device. Since 1996 a large variety of solutions has been designed and manufactured. On a compact
    manifold one or more mass flow or pressure sensor modules can be combined with control valves, two- or three-way valves, shut-off valves, filters or any other functional module as per customer's request. The specifications are open for discussion. Depending on the application the customer may prefer an aluminum or stainless steel manifold, with female threads for gas connections to specification. On request, the system will be assembles, tested and packaged in a clean room. Because of the infinite number of possible solutions, we recommend you to contact our nearest distributor to discuss your application.

    BENEFITS

    Compact assembly ensures space efficiency

    Economical solution, low cost of ownership

    Combination of functions on one manifold (i.e. tubeless construction) reduces potential leak points

    Modular construction enables easy exchange of functional modules

    Pre-tested "Plug and Play" units, reducing custom testing requirements

    AVAILABLE MODULES

    Mass Flow Meters. For flows between 0,1 ... 5 mln/min and 1 ... 50 ln/min N2-equivalent; higher on request.

    Pressure Transducers. With piezo-resistive pressure sensor for pressure ranges between 2 ... 100 mbar and 0,2 ... 10 bar absolute or relative.

    Filters. Sintered stainless steel filter 0,5, 2, 7 or 15 µm.

    Control Valves. Normally closed or open, for flow or pressure control with Kv max. 1,0. Maximum temperature 70°C.

    Solenoid Valves. Shut-off valves, NO or NC. Three-way valves.
