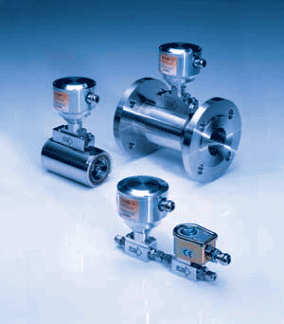

EX-FLOW® Mass Flow Meters/Controllers

    The flow meters/controllers of the EX-FLOW series are thermal mass flow meters/ controllers in rugged construction for use in hazardous areas. The sensor is PTB or CENELEC tested and approved under number PTB Ex-88.B.2103, protection EEx ib IIC T4.   The characteristic properties of Bronkhorst Hi-Tec mass flow meters/controllers are also found in the ex-proof instruments: (no moving parts; short response time; no need for flow computer; temperature and pressure measurement; low pressure drop; pressure ratings up to 400 bar).  Lowest range   0,2…10 mln/min.   Highest range   220…11.000 mln/min.

EX-FLOW Mass Flow Meters for Gases  Range (based on air)

SERIES F-110X                  min. 0,2 ... 10 mln/min       max. 0,3 ... 15 mln/min

SERIES F-111X                  min. 0,3 ... 15 mln/min       max. 0,3 ... 15 ln/min

SERIES F-112AX               min. 0,3 ... 15 ln/min          max. 5 ... 250 ln/min

SERIES F-113AX               min. 2 ... 100 ln/min           max. 25 ... 1250 ln/min

SERIES F-106AX ... GX    min. 0,4 ... 20 m³n/h           max. 220 ... 11000 m³n/h

SERIES F-107AX ... DX     min. 0,4 ... 20 m³n/h          max. 36 ... 1800 m³n/h

SERIES F-116AX ... BX     min. 0,4 ... 20 m³n/h          max. 10 ... 500 m³n/h

EX-FLOW Mass Flow Controller: MFM + Valve Range (based on air)

SERIES F-111X + F- 001AC      min. 0,3 ... 15 mln/min       max. 0,1 ... 5 ln/min

SERIES F-111X + F- 002AC      min. 0,1 ... 5 ln/min           max. 0,3 ... 15 ln/min

SERIES F-112AX + F- 002AC    min. 0,5 ... 15 ln/min          max. 5,0 ... 250 ln/min

EX-FLOW Mass Flow Controller  (with integrated valve)  Range (based on air)

SERIES F-203AX              min. 2 ... 100 ln/min        max. 25 ... 1250 ln/min

SERIES F-206AX ... BX     min. 0,4 ... 20 m³n/h      max. 10 ... 500 m³n/h
