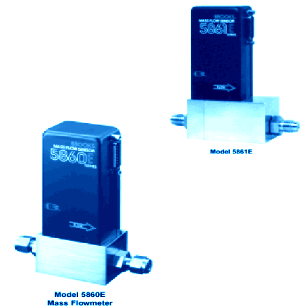

E-Series Mass Flow Meters (Models 5860E, 5861E)

   The Brooks^® Model 5860E, 5861 E Mass Flowmeter accurately measures gas flow. The heart of the system is the flow sensor which produces an electrical output signal linear with mass flow rate. This signal is used for indicating and/or recording. Many options are offered to provide a versatile system of mass flow measurement.

FEATURES

Mass flow measurement.

Fast response - flow signal less than 3 seconds to 98% of final value.

±1% full scale accuracy including linearity.

Repeatability: ±0.25% of rate.

Linear output signal, 0-5 Vdc. No moving parts.

All solid state electronics.

Compact.

Removable sensor.

Insensitive to mounting attitude.
