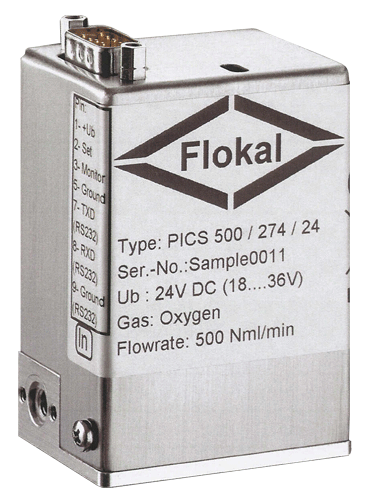

Flokal MFC E-series regulates the flow non-corrosive gases for analytical and other technical application. The standard calibration takes place for oxygen and/or air. Calibrating on other non-corrosive gases is offered when desired. The use of 10mm of filter at the gas inlet is recommended.



Technical data

E500

E6L

E10L

Nominal rate flow

500 ml/min

6l/min

10l/min

Dimension

53x70x40 mm

(wxhxd)

53x70x40 mm

(wxhxd)

53x70x40 mm

(wxhxd)

Gas inlet / gas outlet

M5

M5 or 1/8? NPT

1/8? NPT

Pressure diff. betw.

inlet/outlet

0.5 … 8 bar

1.5 … 4 bar

2 … 4 bar

Electrical connection

Voltage supply

18 … 32 VDC (24 typically)

18 … 32 VDC (24 typically)

18 … 32 VDC (24 typically)

Power input

150mA (70mA typically)

150mA (70mA typically)

150mA (70mA typically)

Serial Interface

D-sub 9, male, bi-directional

D-sub 9, male, bi-directional

D-sub 9, male,  bi-directional

Analog signal input

1 … 5 VDC

1 … 5 VDC

1 … 5 VDC

Analog signal output

1 … 5 VDC

1 … 5 VDC

1 … 5 VDC

Characteristic values

Flow error

± 1% (± 0.5% typically)

± 1% (± 0.5% typically)

± 1% (± 0.5% typically)

Repetition accuracy

± 0.5% (± 0.3% typically)

± 0.5% (± 0.3% typically)

± 0.5% (± 0.3% typically)

Response Time

800ms (500ms typically)

800ms (500ms typically)

800ms (500ms typically)

Work temperature range

5 …50 oC

5 …50 oC

5 …50 oC
