Liquid
Mass Flow Meter LM-2100A
|
|
Features:
The LM-2100A liquid mass flow meter measures
various liquid material flow rates with high
precision.
LINTEC’s patented original thermal mass flow
sensor is incorporated for measuring flow rate.
Digital circuitry provides high-speed reliable
flow rate measurement.
Combined with the flow rate control valve
CV series, high precision liquid flow rate control
is possible.
In addition, combination with LINTEC’s original
vaporizer VU series makes high precision and
high speed vaporization possible.
Applications:
Measurement of various liquids such as chemicals,
organic solvents, liquid organic compounds or
de-ionized water etc.
Flow rate control of various liquids when
used in combination with flow rate control valve
CV series.
Flow rate control and vaporization when used
in combination with vaporizers.
Specifications:
Item |
Units |
Specifications |
Flow rate range
(Full scale) Ethanol equivalent |
g/min |
0.05, 0.1, 0.2,
0.5, 1.0 2.0, 5.0, 10 |
Accuracy |
%F. S. |
±1 |
Linearity |
%F. S. |
±0.5 |
Repeatability |
%F. S. |
±0.2 |
Pressure
capacity |
kPa |
1000 |
Operation
temperature |
°C |
15-35 |
Temperature
coefficient |
%F. S.
/°C |
Zero 0.1 Span
0.1
|
Leak
integrity |
Pa·m3/sec |
1x10-11 |
Materials
exposed to fluids |
Body Seals Flow sensor |
SUS-316L Au SUS-316L
|
Standard
fittings |
Inlet Outlet
|
3.2mm VCR
Male 3.2mm VCR Male
|
Flow rate
command |
Volts
DC |
0-5 |
Flow rate
output |
Volts
DC |
0-5 |
Power supply
requirements |
|
+15V,
100mA -15V, 200mA
|
Alarm
display |
Normal Condition
change Abnormal |
Green LED
flash Red LED flash Red LED continuous on |
Zero
adjustment |
|
Zero switch
or auxiliary input |
Digital
communication |
Digital
interface Alarm output Zero adj. Input Preset input |
RS-232C Open
collector output Available Available
|
Connector and
cable |
Main
connector Communication Cable (Optional) |
D05 8
pin CC-DOSF (D-SUB 9 pin) CC-T2 (D-SUB 25 pin) |
Mounting
direction |
|
Free |
Weight |
g |
800 |
Optional |
LEP CP PT |
Surface
polishing Anti-corrosive plating Pt
Seal | |
Liquid
Mass Flow Controller LC-2100
|
Liquid mass flow controller LC-2100 controls
various liquid material flow rates with high
precision. LINTEC’s original thermal mass flow
sensor (Patent Pending) is incorporated for
measuring flow rate. Digital electronic circuit
provides high speed and highly reliable flow
control.
|
|
Features:
LINTEC’s original ambient temperature compensation
type liquid flow sensor (Patent Pending) is
incorporated to provide a high precision flow
rate control (±2% of FS);
Bypassless type flow meter is incorporated
to reduce inherent error or influence of inclination
and to provide a high precision instrument;
Digital electronic circuits are incorporated
to improve the features including alarm or communication
with external apparatus;
High reliability, normally closed type solenoid
actuator is incorporated into the flow control
valve to provide high security;
High chemical resistance and leak free with
gold (Au) seals.
Applications:
Measuring and controlling of various liquid
such as chemicals, organic solvents, organic
compound liquids or deionized water etc.
Specifications:
Valve operation mode |
Normally closed |
Range (Full scale) C2H5OH equivalent |
g/min |
0.05, 0.1, 0.2, 0.5, 1.0 |
|
2.0, 5.0, 10 |
Minimum controllable flow rate |
%F.
S. |
5 |
Response time |
seconds |
4 |
Accuracy |
%F.
S. |
±2 |
Linearity |
%F.
S. |
±1.0 |
Repeatability |
%F.
S. |
±0.2 |
Required differential pressure |
kPa |
50~150 |
(kgf/cm2) |
(0.5~1.5) |
Withstand pressure |
kPa |
1000 |
(kgf/cm2) |
(10) |
Operation temperature |
°C |
15-35 |
Temperature coefficient |
%F. S. / °C |
Zero |
0.1 |
Span |
0.1 |
Leak integrity |
Pa·m3 /
sec |
<1x10-11 |
atm.cc /sec |
<1x10-10 |
Control valve actuator |
Solenoid actuator |
Materials exposed to fluids |
Body |
SUS-316L |
Control valve |
Ni-Co (Diaphragm) |
PCTFE |
Seals |
Gold (Au) |
Sensor |
SUS-316L |
Standard fittings |
6.35mmVCR, 3.2mmVCR |
Flow rate command |
Volts DC |
0-5 |
Flow rate output |
Volts DC |
0-5 |
Power supply requirements |
+15VDC, 100mA |
-15VDC, 200mA |
Alarm display |
Normal |
Green LED flash |
Condition change |
Red LED flash |
Abnormal |
Red LED continuous on |
Zero adjustment |
Zero switch or auxiliary input |
Digital communication |
Digital interface |
RS-232C |
Alarm output |
Open collector output |
Zero adj. input |
Available |
Preset input |
Available |
Connector & cable |
Main connector |
D05, 8 Pin |
Communication Cable (Optional) |
For
D-Sub 9 Pin |
CC-DOSF |
For
D-Sub 25 Pin |
CC-T2 |
Mounting direction |
Free |
Weight |
g |
1100 |
Option |
LEP (Surface polishing) |
CP (Anti-corrosive plating) |
PT (Pt seal) |
|
High
Performance Vaporizer aporizer Units VU-410,
VU-510
|
VU-410
|
VU-510
|
Features:
The vaporizers can control and vaporize various
liquids efficiently by combination with the
liquid mass flow meter LM-2100.
According to the kind of liquid and process
condition, the best one can be selected among
the various type of vaporizers.
Vaporizers for LP Process:
VU-108; VU-110; VU-301; VU-410; VU-510.
Vaporizer for AP Process:
VU-201
|
CVD Materials and LINTEC Vaporization
Technology
Categories |
Applications |
Thin Films |
Materials |
Liquid Mass Flow Meter |
Vaporizers |
Dielectrics |
Passivation,
Capacitors
|
SiO2 |
TEOS |
LM-2100 |
VU-108 VU-110 VU-301 |
Si3N4 |
TEOS |
BPSG |
TEOS, TEB,
TEPO |
High-k
Films |
Capacitors |
Ta2O5 |
Ta(OC2H5)5 |
LM-2100 |
VU-301 VU-410 VU-510 |
High-k
Films (Ferroelectrics)
|
Capacitors |
BST |
Ba(DPM)2 |
LM-2100 |
VU-510 |
Ba(METHD)2 |
Sr(DPM)2 |
Sr(METHD)2 |
Ti(O-iPr)2(DPM)2 |
Ti(O-tBu)2(DPM)2 |
PZT |
Pb(DPM)2 |
LM-2100 |
VU-510 |
Zr(O-tBu)4 |
Ti(O-iPr)2(DPM)2 |
SBT |
Sr[Ta(OEt)6]2 |
LM-2100 |
VU-510 |
Bi(CH3)3 |
Metal
Films |
Interconnect Metals |
Cu |
Cu(hfac)tmvs |
LM-2100 |
VU-410 VU-510 |
Cu-ATMS |
Electrodes |
Ru |
Ru(EtCp)2 |
LM-2100 |
VU-410 VU-510 |
Ru(OD)3 |
Barrier
Metals |
TiN |
TiCl4, TDMAT,
TDEAT |
LM-2100 |
VU-301 VU-410 VU-510 |
TaN |
Ta(Et2N)4,
Ta(Me2N)5 |
Low-k Films |
Inter-layer
Dielectrics |
Various |
Various |
LM-2100 |
VU-108 VU-301 VU-110 VU-410 VU-510 | |

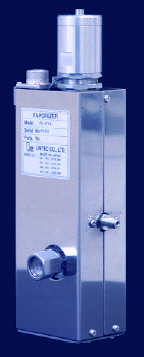

VU410
Specifications
Item |
|
|
Specifications |
Valves |
Control
valve for precursor |
CV-P |
Diaphragm solenoid
valve, normally closed |
Shut-off
valve |
AV |
Diaphragm pneumatic
valve, normally closed |
Thermocouple |
|
|
K
type |
Maximum
operating temperature |
|
|
200°C |
Standard
fittings |
Precursor
inlet Carrier gas inlet Vapor outlet |
|
3.2mm VCR
Male 6.35mm VCR Male 6.35mm VCR Female |
Power
supply |
Inner
block Outer block |
|
One 100V 52.08W
heater Two 100V 34.72W heaters (All heaters connected in
parallel) |
Recommended temperature regulation method |
|
|
P. W. M. P. I. D.
control (less than one second per cycle) |
Pneumatic
actuator operating pressure |
|
|
490-588
kPa(G) |
Materials
exposed to gases and liquids |
|
|
SUS, Au, Ni-Co,
polyimide |
Mounting
direction |
|
|
Free |
Standard
accessories |
Valve
cable |
Between LM and
VU |
CC-LV-3-3M |
Connector |
Plug for
Thermocouple |
CMP01-K
(RKC) |
Connector |
Straight plug
for heater and thermostat |
SRCN6A13-5S
(JAE) | |
VU510
Specifications
Item |
|
|
Specifications |
Valve |
Control valve for
precursor |
CV-P |
Diaphragm, Solenoid,
Normally closed |
Control valve for
solvent |
CV-S |
Diaphragm, Solenoid,
Normally closed |
Shut-off
valve |
AV |
Diaphragm, Pneumatic,
Normally closed |
Heater |
Outer
block |
HR-1 |
120V, 100W, 4 units,
Total 400W |
Inner
block |
HR-2 |
120V, 100W, 2 units,
Total 200W |
Thermocouple |
Outer
block |
TC1 |
Type K
(CA) |
Inner
block |
TC2 |
Type K
(CA) |
Thermostat |
Selectable
by temperature |
High
temperature |
Open at 350°C |
Medium
temperature |
Open at 200°C |
Operating
temperature |
With PID
controller |
|
Room temperature to
300°C |
Fittings |
Valve
unit |
AV inlet |
6.35mm VCR
male |
CV-P
inlet |
3.2mm VCR
female |
CV-S
inlet |
3.2mm VCR
female |
AV drive gas
inlet |
3.2mm OD quick tube
connector Air or N2, Pressure;440-690kPaG |
Inner block |
Vapor
outlet |
12.7mm VCR
female |
Materials
exposed to gases/liquids |
Vaporizer
unit |
|
SS316L,
Au |
Valve
unit |
|
SS316L, Au,
Polyimide |
Dimensions |
Outer
case |
|
H275mm, W160mm,
D143mm |
Mounting
direction |
|
|
Vertical at vapor
outlet down |
Environmental
temperature |
|
|
25°C±15°C |
Outer case
temperature |
|
|
Less than 80°C with
300°C at vaporizer unit |
Weight |
|
|
8 kg |
Accessories |
Interconnecting
cable |
LM2100A to
VU-510 |
3m, 2 pieces (for
CV-P and CV-S) |
Connector |
JAE
SRCN6A-16-7S |
1 piece (for heaters
and thermostat) |
Connector |
RKC
CMP01-K |
2 pieces (for
thermocouple) | |
Applications
Precursor |
Precursor Vapor Pressure torr(@ temp)
|
Vaporizer Temp. (°C) |
Carrier Gas Flow (SCCM)
|
Flow Rate g/min
|
Cocktail Ba(thd)2PMDETA&Sr(thd)2PMDETA |
0.1(240) |
290 |
N2 200 |
0.514 |
Sr(DPM)2 |
2(300) |
280~300 |
N2
100~300 |
0.300 |
Ti(O-C3H7)2(thd)2 |
220(250) |
250 |
N2 200 |
0.977 |
Ti(O-ipu)2(DPM)2 |
4(250) |
250 |
Ar 200 |
1.000 |
Ti(O-tBu)2(DPM)2 |
4(250) |
250 |
Ar 200 |
1.000 |
Ru(EtCp)2 |
9.6(150) |
150 |
N2 200 |
0.910 |
Ru(EtCp)2 |
9.6(150) |
150 |
N2 200 |
0.238 |
Ru(EtCp)2 |
3.5(130) |
130 |
Ar 200 |
3.570 |
Ru(OD)3 |
1.0(200) |
200 |
N2 100 |
0.050 |
Ta(OC2H5)5 |
2.5(170) |
170 |
N2 200 |
0.200 | |
